PT740-2A(150kHz,400A) AC/DC Current probe Input：AC:0.2-60A,DC:0.4-60A; AC:60-600A DC:60-600A Attenuation ratio：1A/10mV,1A/1mV Compatible with any oscilloscope,standard BNC interface. Big clamp,easy operation.

Brand PINTECH

Model PT740-2A

DetailDimension drawingFrequency diagramAccessory detail

PT740-2A AC/DC Current clamp probe （Type 1:battery power supply only,has auto power off after using 10 minutes function.） (Type 2:battery & adaptor power supply,doesn’t have auto power off after using 10 minutes function.) Kindly inform which type you want to order. Send E-mail to get more information: sales@pintech.com.cn
Accuracy and phase shift	Current measuring range	AC:0.2A~60A peak， DC:0.4A~60A	AC:60A~600Apeak， DC:60A~600A
	Attenuation	10mV/A（100：1）	1mV/A（1000:1）
	Accuracy	DC-1kHz，±1.5%+5mV
	Noise	1mV rms
	Rise/fall time	2.3μs
	Reference conditions ：18℃~28℃，20~75%RH，Sine signal frequency 48Hz~65Hz, External magnetic field <40A/m，No dc component, no current carrier, center test sample, load impedance≥1MΩand≤100pF，DC~65Hz Measurement former reset is 0，battery 9V±0.1V
Bandwidth		DC~150kHz（-3dB）
Load impedance		≥1MΩand≤100pF
Insert impedance		50Hz-0.39mΩ,1000Hz-58mΩ
Working voltage		Max.600V rms
Common mode voltage		Max.600V rms
Adjacent conductor influence		50Hz，<10mA/A
Jaw opening conductor position influence		0.5%numerical reading

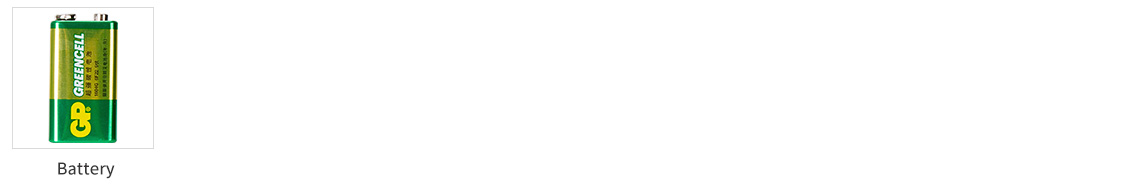

Battery		9V Alkaline battery
Battery capacity indicator		When >6.5V，LED turns green
Battery life		About 50 hour
Overload indicator		LED turn red
Automatic shutdown time		10min
Dc zero adjustment		√
Jaw insert conductor size		One cable: dia. 30mm. Two cable ：dia.24mm or 2х31.5х10mm bus bar
Working Temperature		0~50℃
Working Humidity		20~75%RH
Size		224х97х44mm
Weight		440g
Color		Dark grey box; Red jaw opening
output		Cable length 2M, BNC interface, can be customized multimeter special interface
