PT-710 (100kHZ,0.05-100A)AC/DC current probe

PT-710(100kHz,100A)AC/DC Current probe Bandwidth:100kHz Attenuation ratio:100mV/A,10mV/A Current range:0.05A-10A,10A-100A Accuracy:2%±2mV

Brand PINTECH

Model PT-710

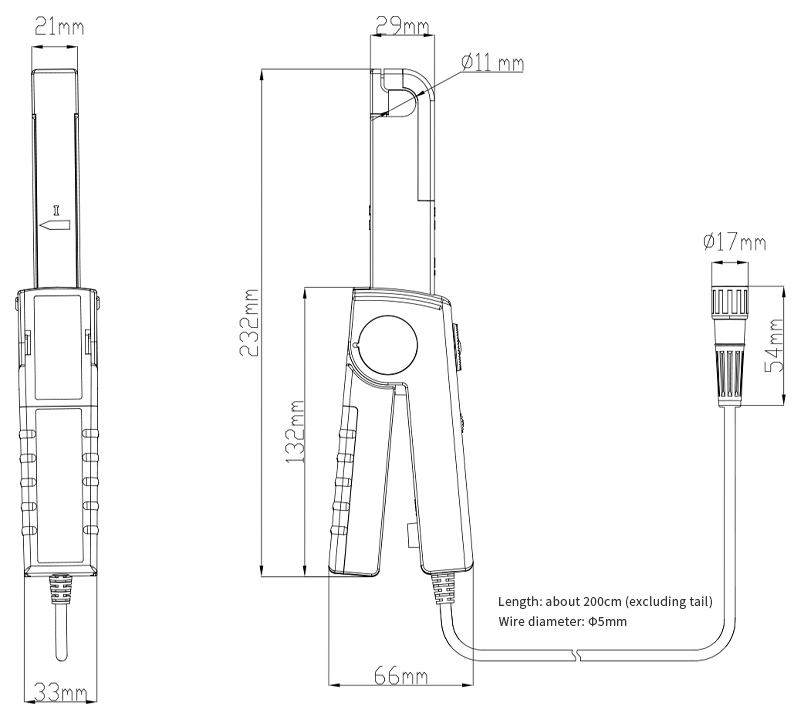

DetailDimension drawingFrequency diagramAccessory detail

Send E-mail to get more information: sales@pintech.com.cn

Or contact: +86 13825053608

Model	PT-710
Measuring range	0.05A~10Apeak	10A~100Apeak
Conversion ratio	100mV/A（10:1）	10mV/A（100:1）
Noise	6mV	600μV
Bandwidth	DC-100kHz
Accuracy	2%
Rise time	3.5μs
Working Voltage	600V
Battery	9V alkaline battery
Low battery Indicate	with green LED light when >6.5V
Overload indicator	Red LED light indicates the over measuring current, change the range
Clamp.Dia.	11mm Diameter
Operating temperature	0~﹢50℃
Working Humidity	20~75%RH
Cable length	2m
Size	2313667 mm
Weight	330g（including battery)
