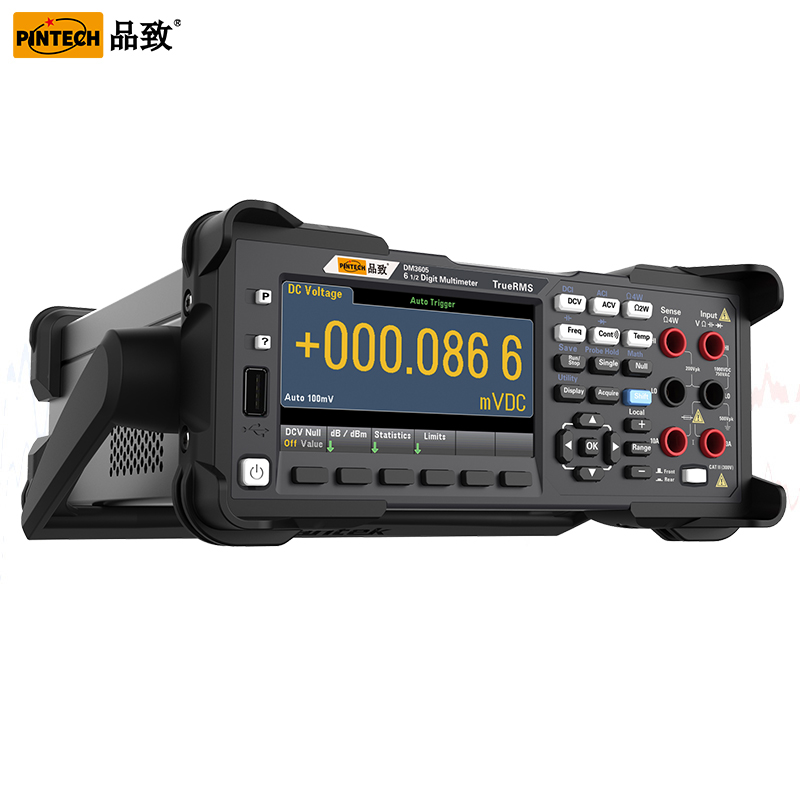

DM3605 desktop digital multimeter 6 1/2 bit resolution
-True 6 1/2 bit resolution
-30 k/s high-speed data acquisition
-30 k/s high-speed data acquisition
DetailDimension drawingFrequency diagramAccessory detail
| Model | DM3605 |
| DC voltage | 100mV/1V/10V/100V/1000V |
| AC voltage | 100mV/1V/10V/100V/750V |
| DC current | 100μA/1mA/10mA/100mA/1A/3A/10A |
| AC current | 100μA/1mA/10mA/100mA/1A/3A/10A |
| Resistance(Ω) | 100Ω/1kΩ/10kΩ/100kΩ/1MΩ/10MΩ/100MΩ |
| Capacitance(F) | 1nF/10nF/100nF/1μF/10μF/100μF |
| Frequency(Hz) | 3Hz~300kHz(Voltage) |
| Resolution bits | 6½ |
| Basic accuracy of DCV | 35ppm |
| Max.reading rate | 30,000 readings per second |
| Memory | 10,000 readings |
| Dual row display | yes |
| Statistical graphics | Histogram, bar chart, trend chart |
| Interface | USB、RS232/485 |
| Input terminal | front panel |
