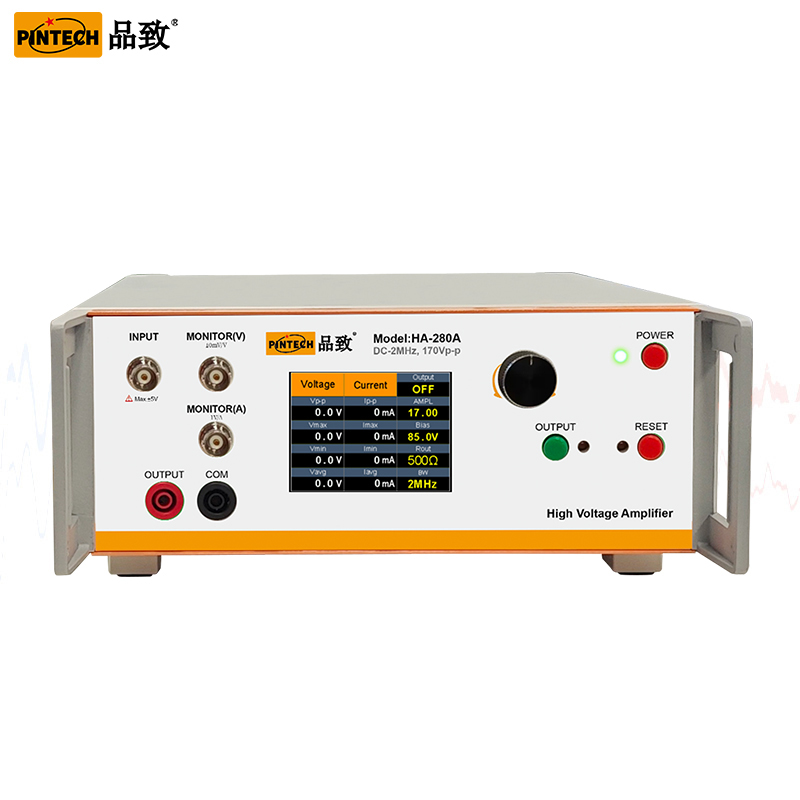

HA-280A(2MHz,170Vp-p)high voltage amplifier

WeChat

Sina Weibo

QQ space

Douban

Baidu Post Bar

The HA-280A delivers an output current up to 0.5A, an output voltage of 170Vp-p, and features a high bandwidth of 0-2MHz. It's built-in overvoltage, overcurrent, overtemperature, and overload protection. It has an RS485 communication interface for control by a master computer.

Brand PINTECH

Model HA-280A

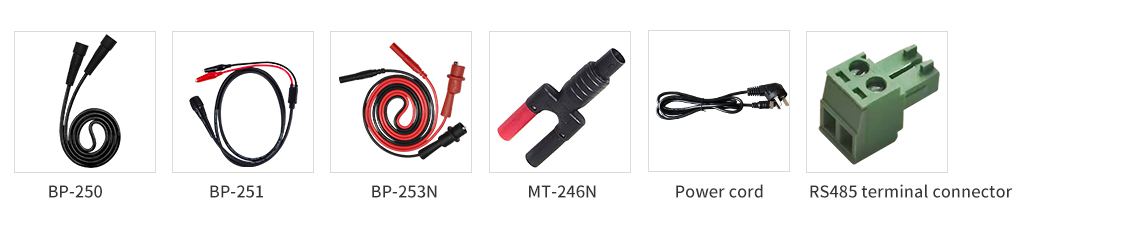

DetailDimension drawingFrequency diagramAccessory detail

Model	HA-280A
Output format	Single-ended output
Bandwidth（-3dB）	DC-2MHz
Bandwidth（-3dB）	DC-1MHz（Enable bandwidth limit;）
Maximum output AC voltage	170Vpp
Maximum output DC voltage	±85V
Maximum output AC current	1App
Maximum output DC current	±0.5A
Maximum output power	42.5Wp
Voltage gain multiple	17
Load RL upper limit	≥170Ω
Load CL upper limit	≤10nF（No series resistance at any frequency）
Protective resistor	500Ω
Input amplitude	0~10Vp-p（±5Vp）
Slew rate	1.5kV/μs
Voltage detection	1:100（10mV/V）
Current detection	1:1（1V/A）
Output interface	Banana plug interface
Protect	Overvoltage/overcurrent/overtemperature/overload protection
Supply voltage	AC100V~240V +/- 10%, 50~60Hz
Working temperature	0℃~45℃
Size	236.5(W) x 88.9(H) x 382.8(L) mm
