PT-5260（60kVp-p,60MHz) high voltage differential probe
PT-5260, voltage 60kVp-p, suitable for testing high voltage signal, attenuator x500, x5000 according to different range selection test, BNC interface can be compatible with any brand oscilloscope use.

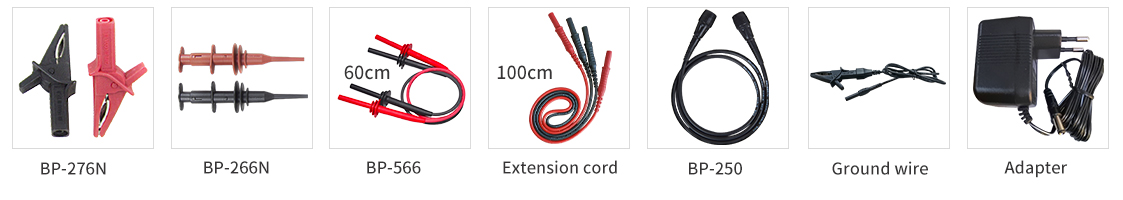

DetailDimension drawingFrequency diagramAccessory detail
Model | PT-5260 |
Bandwidth（-3dB） | DC-60MHz（500X） DC-20MHz（5000X） |
Input voltage | 5000X：60kVp-p or 30kV DC 500X：6kVp-p or 3kV DC |
Input voltage AC/RMS | 21kV |
Attenuation Ratio | 500X，5000X |
Rise time | ≥5.8ns（500X） ≥17.8ns（5000X） |
Between Input | 160MΩ//3pF（Each input to ground） 320MΩ//1.5pF（Between inputs） |
Accuracy | ±2% |
Common mode voltage RMS | 10.6kV |
Oscilloscope Input Impedance | 1MΩ |
CMRR（Tyical） | 60Hz：＞60dB 100Hz：＞50dB 1MHz：＞40dB |
Power Requirements | 9V DC Adapter |
Working Temperature | 0~50℃ |
Working Humidity | 10~85%RH |
Weight | 506g |
Size（L*W*H） | 275*147*34mm |
50 Hz / 60 kVp-p, 100 KHz / 40 kVp-p, 500 KHz / 30 kVp-p, 1 MHz / 25 kVp-p，3 MHz /15 kVp-p, 20 MHz / 7 kVp-p, 60 MHz / 3 kVp-p
