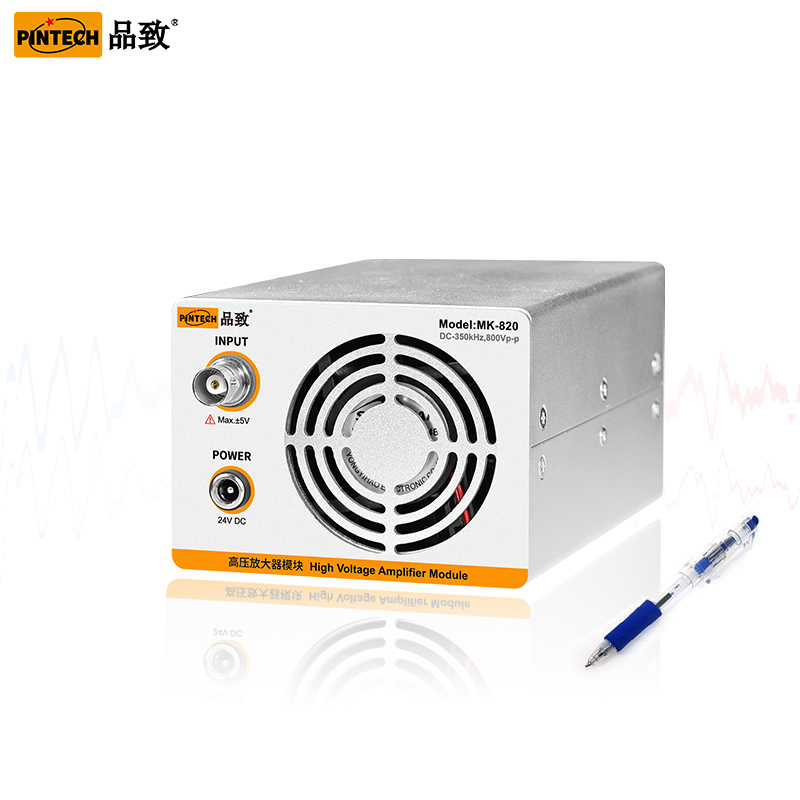

High voltage amplifier module MK-820 (350 kHz, 800 Vp-p)

WeChat

Sina Weibo

QQ space

Douban

Baidu Post Bar

-Voltage gain 80 times
-Maximum output voltage 800Vp-p (±400Vp)
-Maximum current ±50mA
-Built-in fan for effective heat dissipation
-Compact design with pre-drilled mounting holes in the body, can be used with mounting

Brand PINTECH

Model MK-820

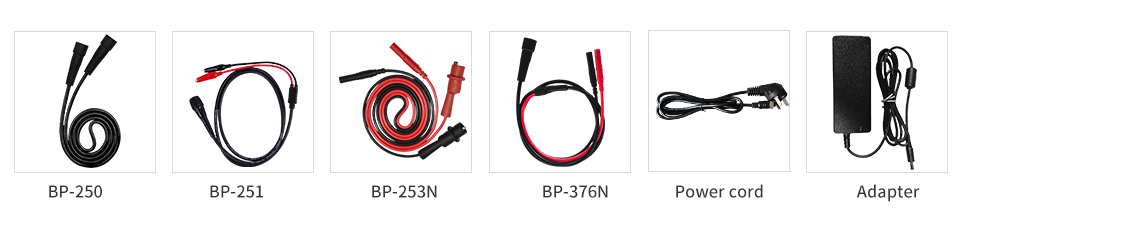

DetailDimension drawingFrequency diagramAccessory detail

Model	MK-820
Output Mode	Single-ended output
Bandwidth（-3dB）	DC-350kHz
Output Max. Voltage	800Vp-p
Output Max. Current	±50mA
Output Max. Power	20Wp
Accuracy	±1%
Slew Rate	500V/μs
Voltage gain	80（±1%）
Noise	0.1V rms
Output Impedance	10Ω
Output DC bias	0~±400V（±1%+0.2V）
Input amplitude	0~10Vp-p（±5Vp）
Supply voltage	24V DC
Dimension（WxHxD）	9267138mm
