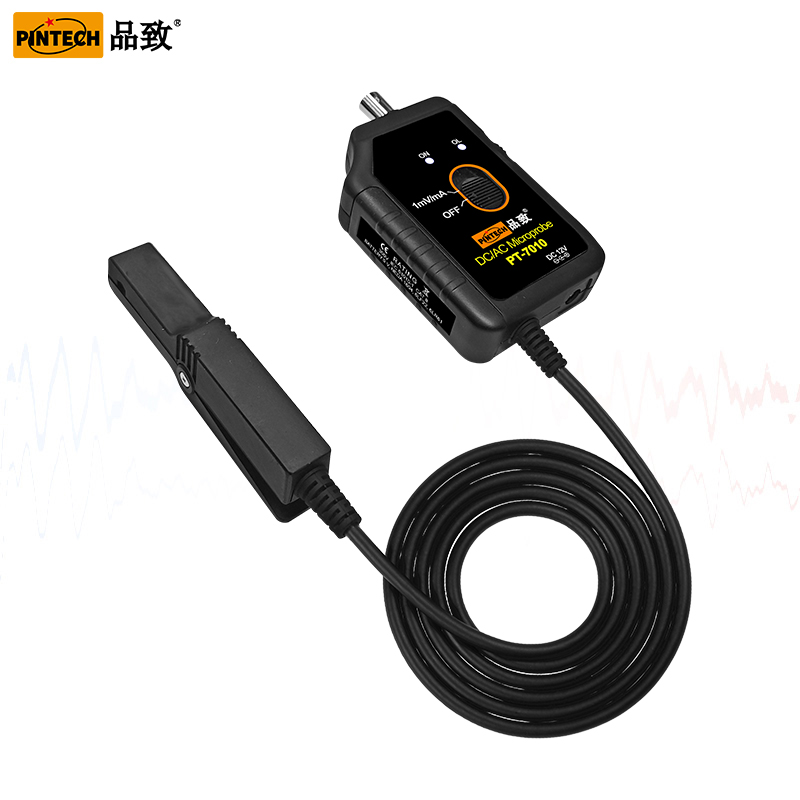

PT-7010（2kHz,0.1mA-4.5A）current probe
The PT-7010 current probe can measure low DC or AC currents without having to turn on the circuit being processed.

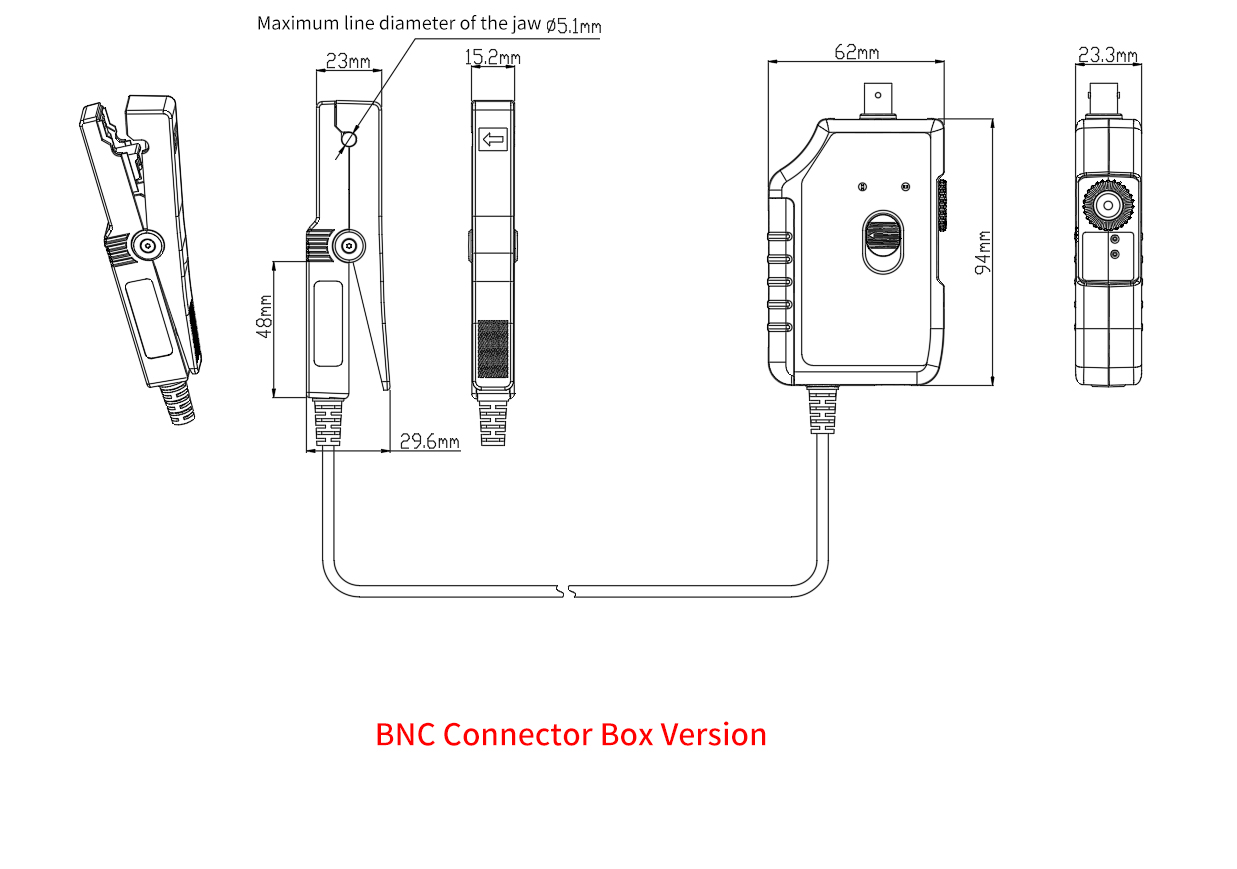

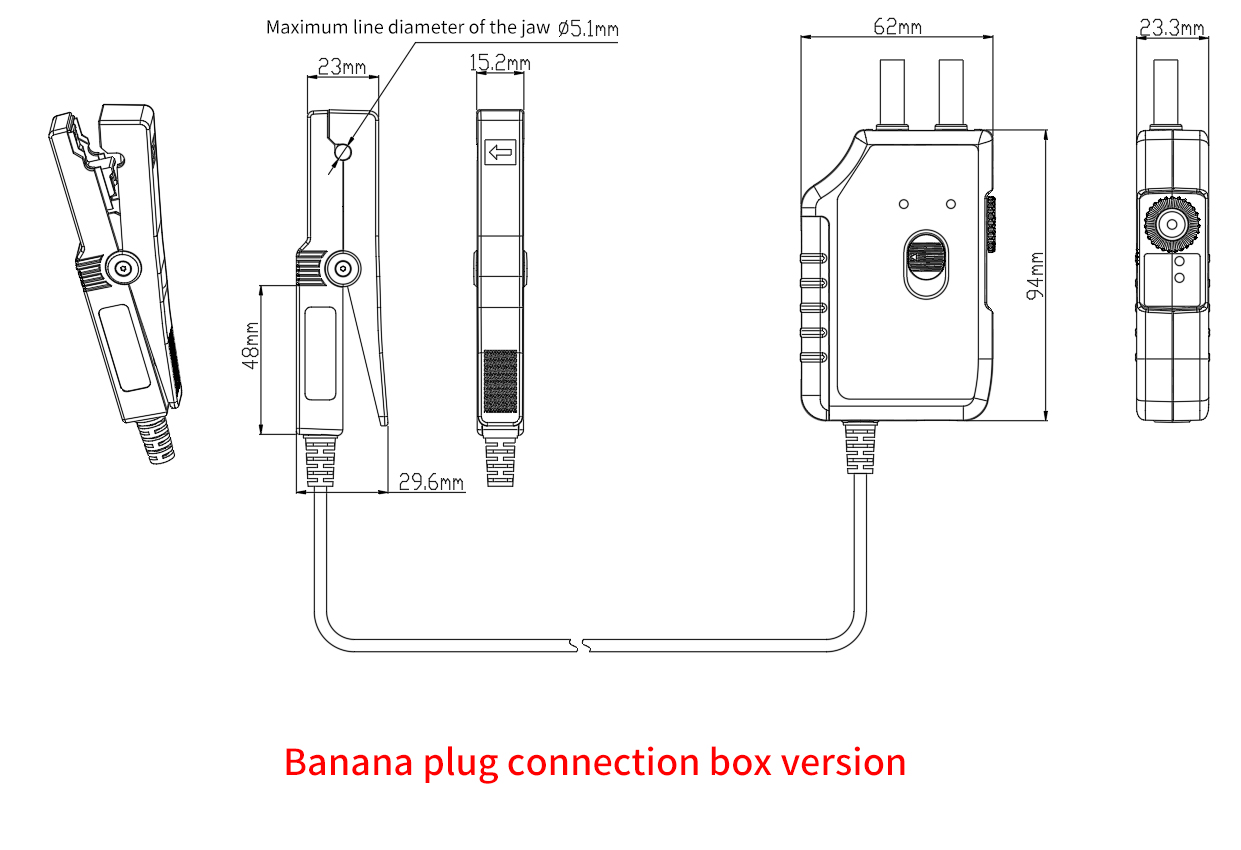

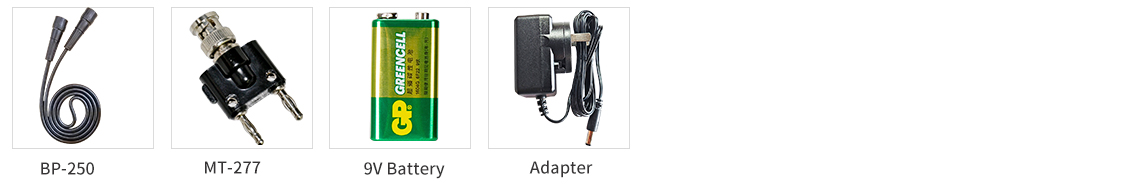

DetailDimension drawingFrequency diagramAccessory detail
Model | PT-7010 | |
Bandwidth(-3dB) | DC-2kHz | |
DC Current | 0.1mA-4.5A | |
AC Current | 0.1mA-3A | |
Peak current | 0.1mA-4.5A | |
Ratio | 1mV/mA（1:1） | |
Rise time | 175μs | |
Output noise from DC to 3kHz | <100μv | |
Output impedance | 200Ω | |
Zeroing | ±25mA | |
Error | Typical | ±1% |
Guarantee | ±3%+2mV | |
Operating temperature | 0~+50℃ | |
Operating humidity | 10-85%RH | |
Weight | 140g | |
1kHz 档位图
