PT-702 (4000Ap-p,50kHz）Zero Flux Current Probe

Model

PT-702

Bandwidth

DC-50kHz

AC Current

4000Ap-p

Max.current

1200A rms

DC Current

2000A

Min.current

500mA

Accuracy

Guarantee

±3%

Typical

±1%

Temperature drift/zero drift

<1mV

Auto-zero accuracy

≤0.1mV

di/dt(Max)

20A/us

Coupling

≥1MΩ和≤47pF

Rise time

7us

Coupling

AC/DC

Diameter

52mm

Ratio

1mV/A(1000:1)

Working Temperature

0-50℃

Working Humidity

20-75%RH

Weight

650g

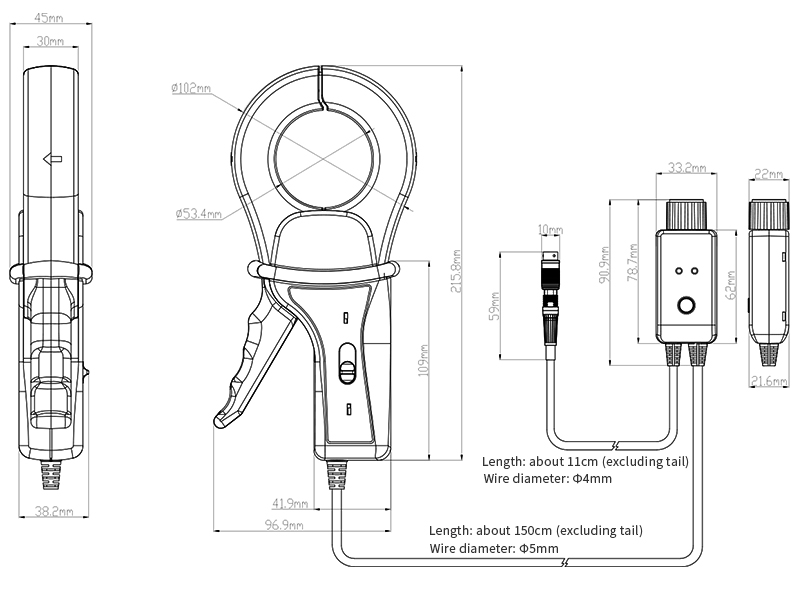

Size(LxWxH)

216x111x45mm
