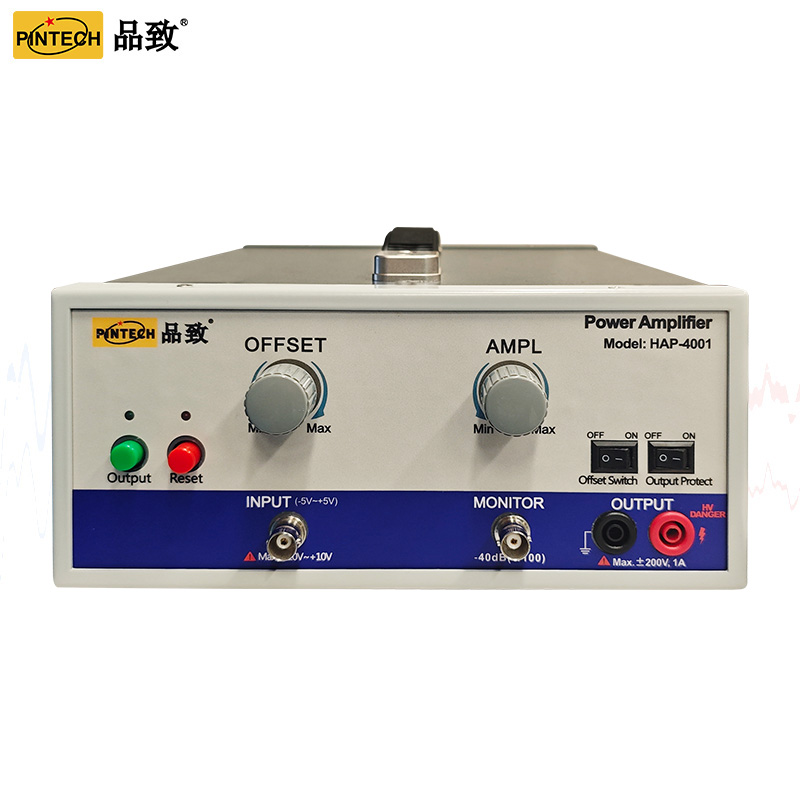

HAP-4001 (30kHz,400Vp-p) Power Amplifier

WeChat

Sina Weibo

QQ space

Douban

Baidu Post Bar

The HAP-4001 is a very practical signal amplifier with the advantages of small size, light weight and easy operation, high voltage output (400Vp-p) and large output current (2.8Ap-p).

Brand PINTECH

Model HAP-4001

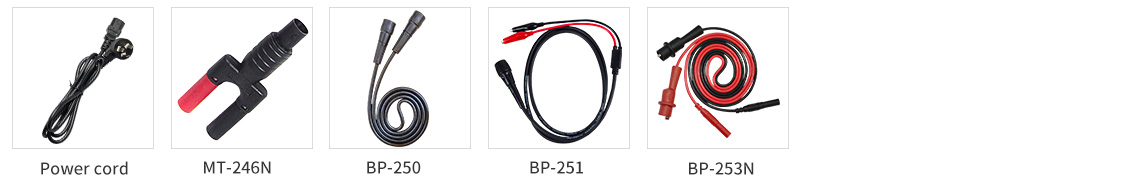

DetailDimension drawingFrequency diagramAccessory detail

Model	HAP-4001
Output Mode	Single Output
Output voltage	±200V
DC current	±0.5A
AC current	2.8Ap-p
Bandwidth	DC-30kHz
Dissipate power(AC/DC)	100W/50W
Output power(DC)	100W
Output power(AC,Feak)	280W
INPUT	0-±5V
MONITOR	1/100
Slew Rate	40/Vμs
Noise	≥80dB
Working temperature and humidity	0~40℃；0~80%RH
Storage temperature and humidity	-20~60℃；0~90%
Size/Weight	220(width)x95(height)x296(Length)mm/4.45kg
