1、Including 7 measurement functions in one: oscilloscope, waveform generator, multimeter, FFT spectrum analyzer, frequency. counter, protocol analysis, amplitude-frequency curve analysis.
2、350 MHz / 500 MHz oscilloscope bandwidth, 5 GSa/s sample rate.
3、Standard 400MB memory depth. 600,000 wfms/s refresh rate, easy to capture exceptional and low probability events.
4、10.4-inch multi-touch screen.

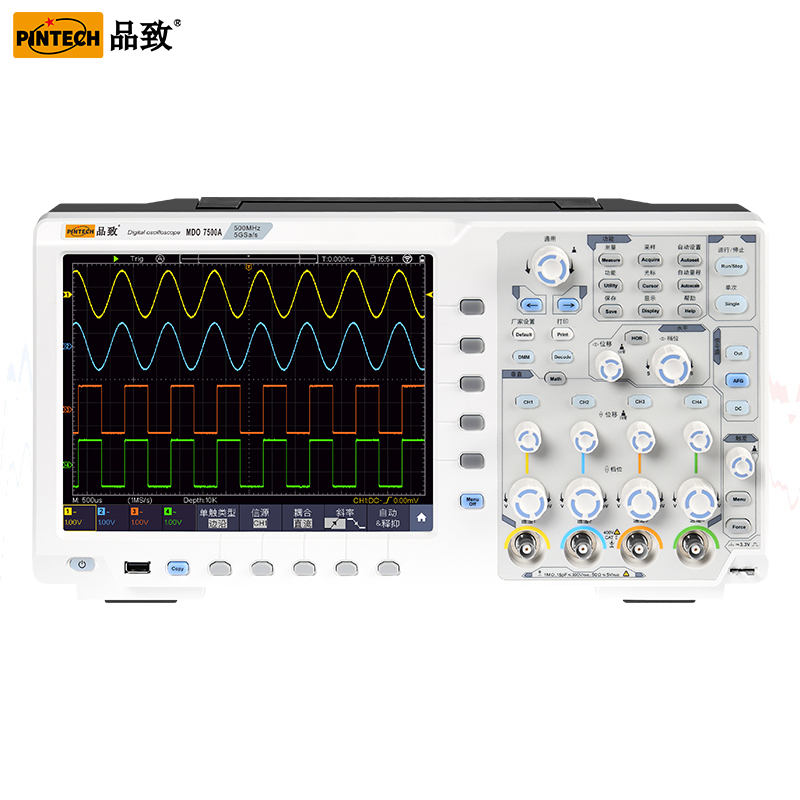

Model | MDO 7500 | MDO 7500A |
Channels | 2 | 4 |
Bandwidth | 500MHz | 500MHz |
Rise time | 0.7ns | 0.7ns |
Sampling rate(single) | 5GSa/s | |
Sampling rate(dual) | 2.5GSa/s | |
Sampling rate(four) | 1GSa/s | |
Storage depth | 400M | |
Input coupling | AC,DC,GND | |
Input impedance | 1MΩ±2%,and 15pF±5pF paralleling,50Ω±2% | |
Vertical resolution | 8 bits | |
Time base range | 500ps/div-1000s/div,step by 1-2-5 | |
Trigger mode | Auto,normal,single | |
Trigger | Edge,video,Pulse,Slope,Runt,Windows,Timeout,Nth Edge,Logic,I2C,SPI,RS232/UART,LIN,CAN | |
Display screen | 10.4 inch | |
Touching screen | √ | |
Functional generator | 50M single channel function generator | |
DMM | Optional | |
Display resolution | 800×600 | |
Waveform capture rate | 600000wfms/s | |
Dimension | 422x226x135mm | |
Weight | 5kg | |
Working Humidity | 0~90%RH | |
| Operating temperature | 0℃- 40℃ | |
