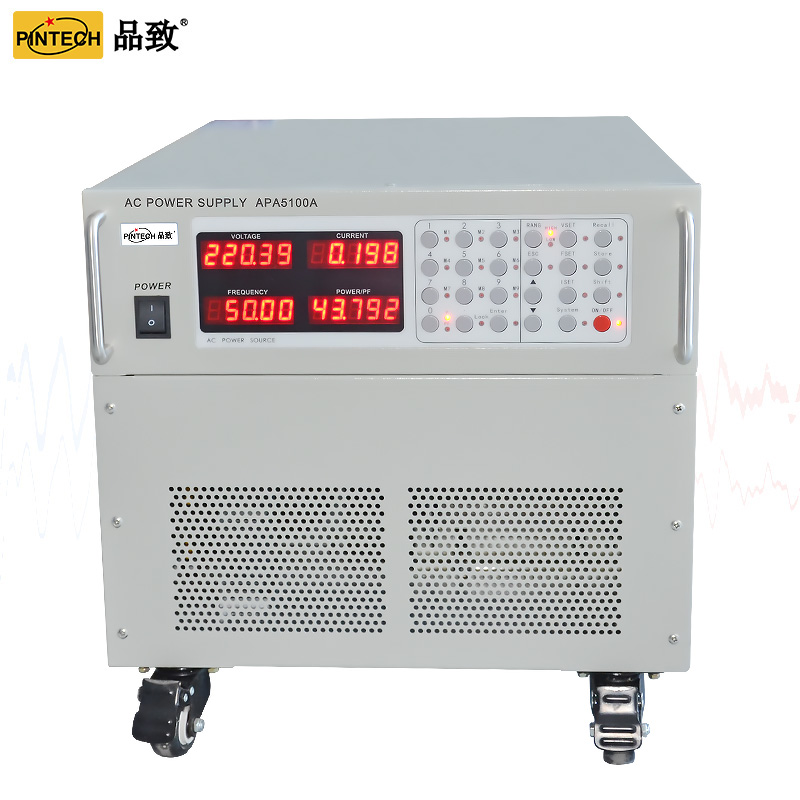

APA5200A series 3 phase high power AC power supply

WeChat

Sina Weibo

QQ space

Douban

Baidu Post Bar

Brand PINTECH

Model APA5200A

DetailDimension drawingFrequency diagramAccessory detail

APA5200A series high power AC power supply IGBT/SPWM Pulse Wave width adjustment mode Terminal Voltage feedback compensation function ensures no error in test power can set the waveform starting angle (0-359°), with synchronous source signal interface Select-able voltage Analog (0-5V) or current analog (4-20mA) control of power output Using a single chip microcomputer (d/a circuit) to collect voltage and current waveform data directly interface rs232/rs485 is optional, communication with computer CPU design to control the logic circuit opening and closing,one to one drive.

Model			APA5215A	APA5220A	APA5230A	APA5260A	APA52100A
Power			15kVA	20kVA	30kVA	60kVA	100kVA
Working			SPWM( Sinusoidal Pulse Width Modulation)
INPUT	Phase		3φ4W
	Voltage		380V±10%
	Frequency		47Hz~63Hz
OUTPUT	Phase		3φ4W
	Voltage		0-150VAC / 0-300VAC AUTO
	Frequency		45~120Hz(40-500Hz optional)，0.1Step
	Max Current	L=120V	42A	56A	84A	168A	278A
		H=240V	21A	28A	42A	84A	139A
Display			Vrms、Arms、Fre、Wattage、PF
Line Regulation			0.10%
Load Regulation			1%
T.H.D			2%(Pure resistive load)
Frequency Regulation			0.01%
Voltage Resolution			0.1V
Frequency Resolution			0.1Hz
Current Resolution			0.01A			0.1A
Accuracy	Voltage		0.5%FS+5dgt
	Current		0.5%FS+5dgt
	Wattage		0.5%FS+5dgt
	Frequency		0.01%FS+5dgt
Setting accuracy	Voltage		1%
	Current		0.10%
Memory			M1 (V_F_A)﹑M2 (V_F_A) ……M9 (V_F_A)
Interface			RS232C 【IEEE488.2(GPIB) optional】
I-LIM Set			O-Max Current
Protection			Over Current Over Temp Over Load Short Circuit
Weight(Kg)			150	200	300	500	900
Dimension W×H×D(mm)			430×700×700	610×930×1050		700×1200×1400
Environment			0-40℃ 20-80%RH
