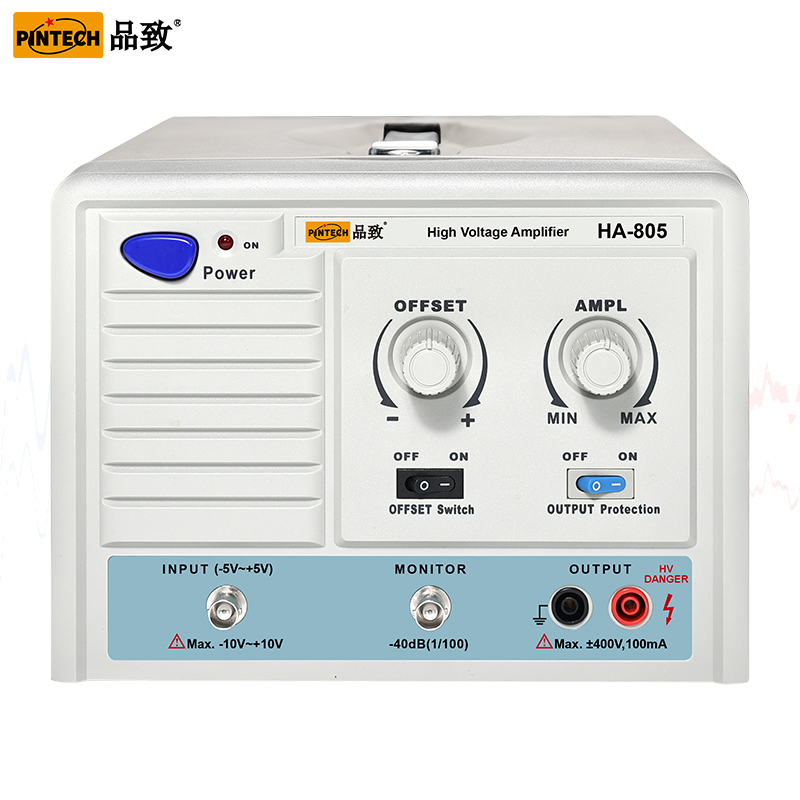

HA-805 (300kHz,800Vp-p) High Voltage Amplifier

WeChat

Sina Weibo

QQ space

Douban

Baidu Post Bar

Brand PINTECH

Model HA-805

DetailDimension drawingFrequency diagramAccessory detail

Product Name： HA-805(300kHz,800Vp-p)High Voltage Amplifier Short Description： 800Vp-p(±400V DC) 200mAp-p(±100mA DC) Bandwidth: ≦300kHz(400Vp-p)

Send email to get more information:sales@pintech.com.cn

Model	HA-805
Output DC Voltage(Max.)	±400V
Output AC Voltage(Max.)	800Vp-p
DC Current(Max.)	±100mA
AC Current(Max.)	200mAp-p
Output Power(Max.)	40VA
Power Bandwidth	DC-300kHz（400Vp-p）
Slew Rate	300V/μs
Output Resistance (Protection SW OFF)	100Ω
Output Resistance (Protection SW ON)	7.5kΩ/80watt
Safe Loading	≧4kΩ/800Vp-p
Input Voltage	0~10Vp-p/20Vp-p
Voltage Gain	1~180
DC OFFEST	0 or± 400V
Monitor Output	100:1
Working Temperature	0~40℃
Working Humidity	0~80%RH
Weight	5.2kg
size	31027095mm
