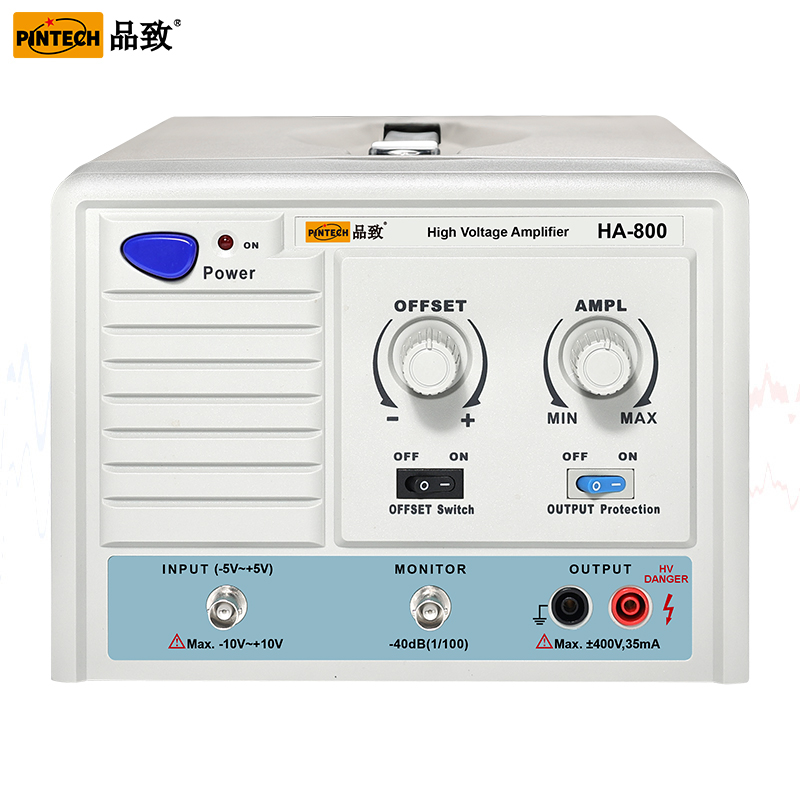

HA-800 (200kHz,800Vp-p) High Voltage Amplifier

WeChat

Sina Weibo

QQ space

Douban

Baidu Post Bar

Brand PINTECH

Model HA-800

DetailDimension drawingFrequency diagramAccessory detail

HA-800(200kHz,800Vp-p)High Voltage Amplifier Short Description： 800Vp-p(±400V DC) 70mAp-p(±35mA DC) Bandwidth: ≦200kHz(400Vp-p) Slew Rate: 200V/us Gain(AMPL): 0~180(10 Turn VR)

Send email to get more information:sales@pintech.com.cn

Model	HA-800
Output DC Voltage(Max.)	±400V
Output AC Voltage(Max.)	800Vp-p
DC Current(Max.)	±35mA
AC Current(Max.)	70mAp-p
Output Power(Max.)	14VA
Power Bandwidth	DC-200kHz（400Vp-p）
Slew Rate	200V/μs
Output Resistance (Protection SW OFF)	100Ω
Output Resistance (Protection SW ON)	15kΩ/80watt
Safe Loading	≧11kΩ/800Vp-p
Input Voltage	0~10Vp-p/20Vp-p
Voltage Gain	1~180
DC OFFEST	0 or± 400V
Monitor Output	100:1
Working Temperature	0~40℃
Working Temperature	0~80%RH
Weight	5.2kg
size	31027095mm
