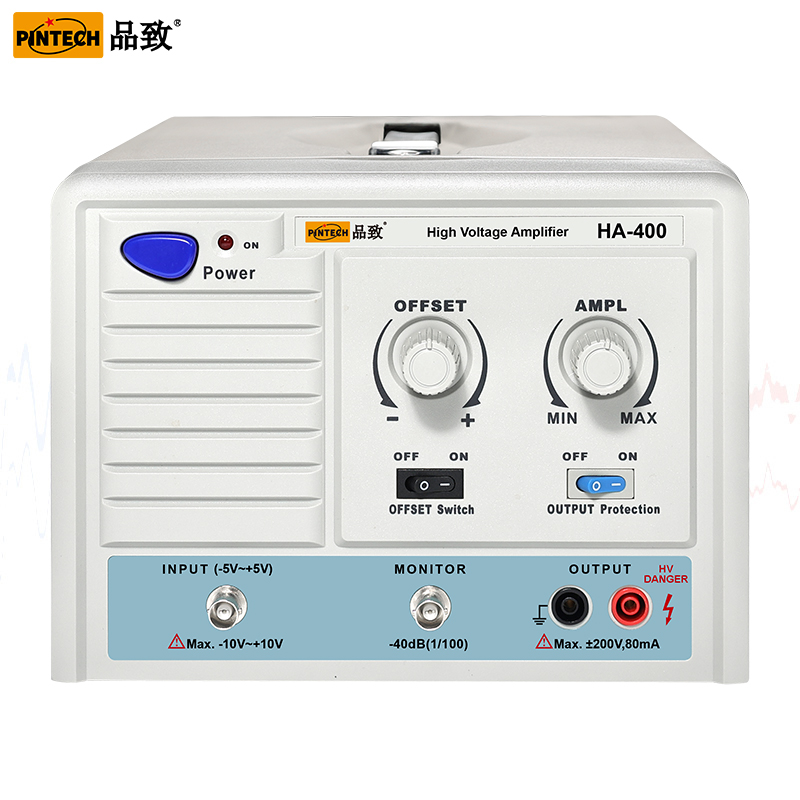

HA-400 (600kHz,400Vp-p) High Voltage Amplifier

WeChat

Sina Weibo

QQ space

Douban

Baidu Post Bar

HA-400(600kHz,400V) High Voltage Amplifier Short Description： 400Vp-p(±200V DC) 160mAp-p(±80mA DC) Bandwidth: ≦600kHz(200Vp-p) Slew Rate: 300V/us

Brand PINTECH

Model HA-400

DetailDimension drawingFrequency diagramAccessory detail

Send email to get more information:sales@pintech.com.cn

Model	HA-400
Output DC Voltage(Max.)	±200V
Output AC Voltage(Max.)	400Vp-p
DC Current(Max.)	±80mA
AC Current(Max.)	160mAp-p
Output Power(Max.)	16VA
Power Bandwidth	DC-600kHz（200Vp-p）
Slew Rate	300V/μs
Output Resistance (Protection SW OFF)	50Ω
Output Resistance (Protection SW ON)	4kΩ/40watt
Safe Loading	≧2.5kΩ/400Vp-p
Input Voltage	0~20Vp-p
Voltage Gain	1~90
DC OFFEST	0 or± 200V
Monitor Output	100:1
Working Temperature	0~40℃
Working Humidity	0~80%RH
Weight	5.2kg
size	31027095mm
