It is a very practical high voltage amplifier in testing and measuring industry. Low cost and easy operation. The max voltage output is able to reach 4800 Vp-p. The various advantages are very useful for users operation. Very suitable for different industries for: Semiconductor High Voltage Driver,TFT Field High Voltage Driver,High Voltage Engineering,MEMS Engineering,Nano Technology,PZT Driver,Static Charge Engineering, Bio-medical Engineering It is also used for Audio Signal Generator and Function generator.
Send email to get more information:sales@pintech.com.cn

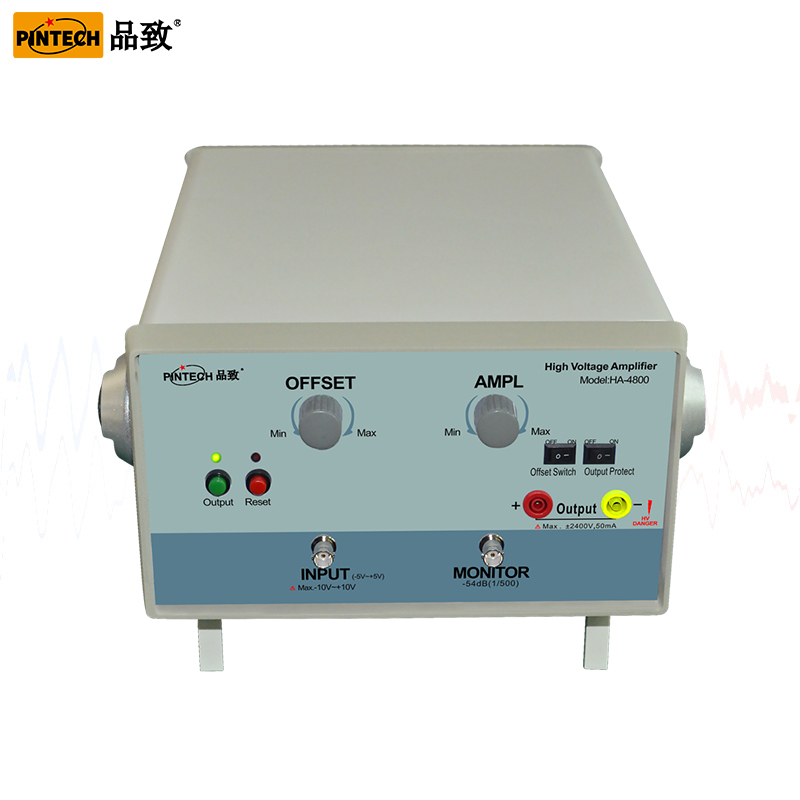

MODEL | HA-4800 |
Output DC Voltage(Max.) | 2400V DC |
Output AC Voltage(Max.) | 4800Vp-p |
Output DC Current(Max.) | 50mADC |
Output AC Current(Max.) | 100mAp-p |
Output Power(Max.) | 120 VA |
Bandwidth(Typ.) | DC-5kHz/2400Vp-p |
Slew Rate(Typ.) | 60V/μs |
Output Resistance(Protection switch off） | 100Ω |
Output Resistance (Protection switch on） | 120kΩ/120watt |
Safe use load limited | ≥48kΩ/4800Vp-p |
Input waveform(voltage)max./limited | ±5V(max. ±10V) |
AMPL(Voltage Gain times) | 0～480 (10turns) |
OFFSET(Adjustable DC voltage output) | 0~ ± 2400V(10turns+switch) |
Monitor (output) | 500：1 |
Working Temperature | 0~40℃ |
Working Humidity | 0~80%RH |
Weight | 5.4kg |
size | 320*260*150mm |
| Output mode | Differential |
Output protection device | 1.Protection SW Protection resistance(Switch) 2.Overload protection circuit 3.Output special fuse |
