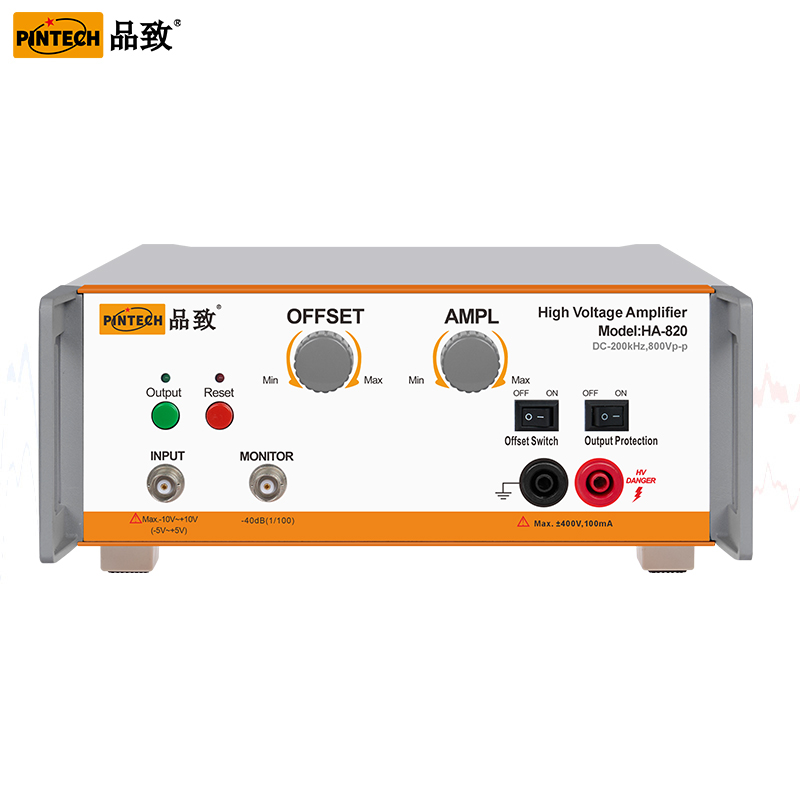

HA-820 (200kHz,800Vp-p) High voltage amplifier

Brand PINTECH

Model HA-820

DetailDimension drawingFrequency diagramAccessory detail

HA-820 is a very practical high voltage amplifier in testing and measuring industry. Its dimension is small, light weight and easy operation. The max voltage output is able to reach 800 Vp-p. The various advantages are very useful for users operation. Very suitable for different industries for: Semiconductor High Voltage Driver,TFT Field High Voltage Driver,High Voltage Engineering,MEMS Engineering,Nano Technology,PZT Driver,Static Charge Engineering, Bio-medical Engineering It is also used for Audio Signal Generator and Function Generator Amplifier.

Send email to get more information:sales@pintech.com.cn

MODEL	HA-820
Output DC Voltage(Max.)	400V DC
Output AC Voltage(Max.)	800Vp-p
Output DC Current(Max.)	100mADC
Output AC Current(Max.)	200mAp-p
Output Power(Max.)	40 VA
Power Bandwidth	DC-200kHz/400Vp-p
Slew Rate	300V/us
Output Resistance (Protection SW OFF	100Ω
Output Resistance (Protection SW ON)	7.5kΩ
Safe Loading	0~10Vp-p/20Vp-p
Voltage Gain	0～100 (10 turns)
DC OFFSET	0~ ± 400V(10turns+switch)
Output monitor	100：1
Working Temperature	0~40℃
Working Humidity	0~80%RH
Weight	5.4kg
size	320260150mm
