Ouput special fuse,protection switch,Microcomputer control overload protection. Very suitable for different industries for: Semiconductor High Voltage Driver,TFT Field High Voltage Driver,High Voltage Engineering,MEMS Engineering,Nano Technology,PZT Driver,Static Charge Engineering, Bio-medical Engineering It is also used for Audio Signal Generator and Function Generator Amplifier.
Send email to get more information:sales@pintech.com.cn

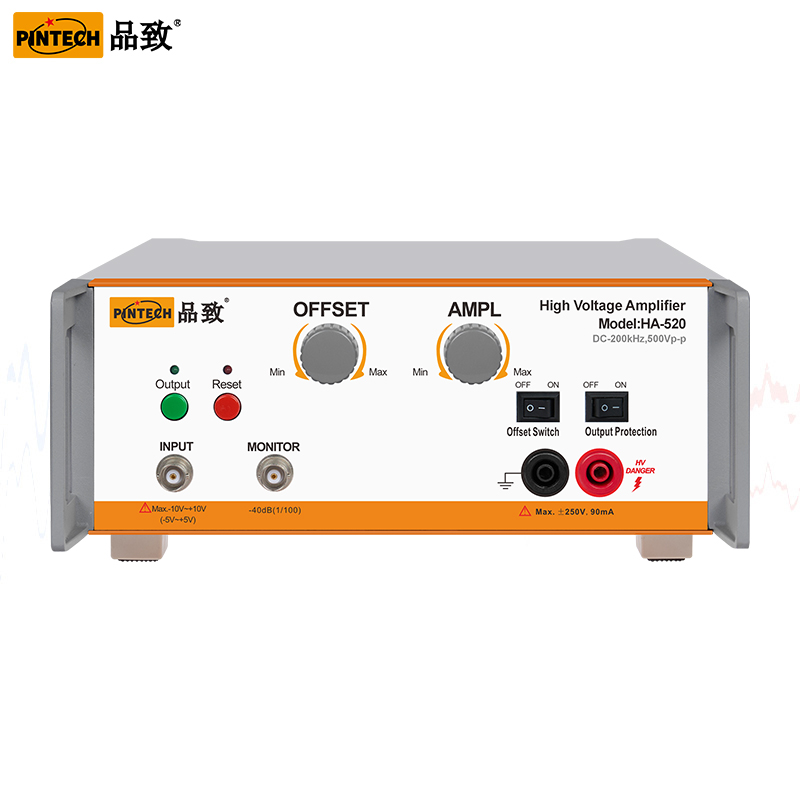

MODEL | HA-520 |
Output DC Voltage(Max.) | 250V DC |
Output AC Voltage(Max.) | 500Vp-p |
Output DC Current(Max.) | 90mADC |
Output AC Current(Max.) | 180mAp-p |
Output Power(Max.) | 22.5 VA |
Power Bandwidth | DC-200kHz/250Vp-p |
Slew Rate | 300V/μs |
Output Resistance (Protection SW OFF | 100Ω |
Output Resistance (Protection SW ON) | 5kΩ/30Watt |
Safe Loading | 0~10Vp-p/20Vp-p |
Voltage Gain | 0～100 (10 turns) |
DC OFFSET | 0~ ± 250V(10turns+switch) |
Output monitor | 100：1 |
Working Temperature | 0~40℃ |
| Working Humidity | 0~80%RH |
Weight | 4.5kg |
size | 382.9*236.3*103.5 mm |
Manual measurement, error ±2mm
