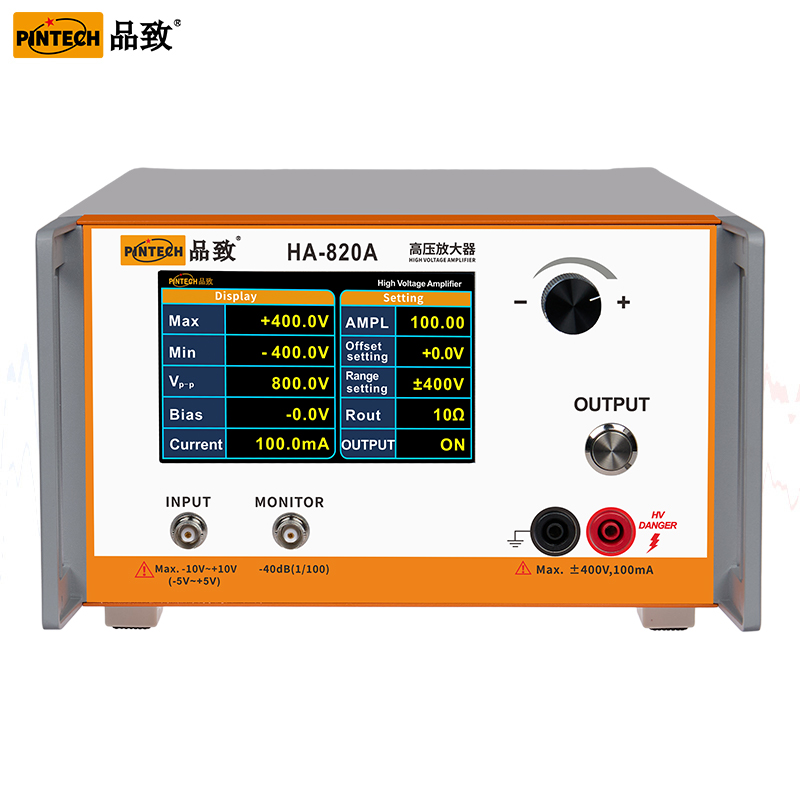

HA-820A (400kHz,800Vp-p) Digital display high voltage amplifier

WeChat

Sina Weibo

QQ space

Douban

Baidu Post Bar

- OUTPUT button toggles output off, single press to switch state, quick multiple presses to turn off output
- Knob speed recognition, manual fast and adjustment of parameters
- RS-485 programmable function, quick setting of amplifier parameters, one-to-many batch control available

Brand PINTECH

Model HA-820A

DetailDimension drawingFrequency diagramAccessory detail

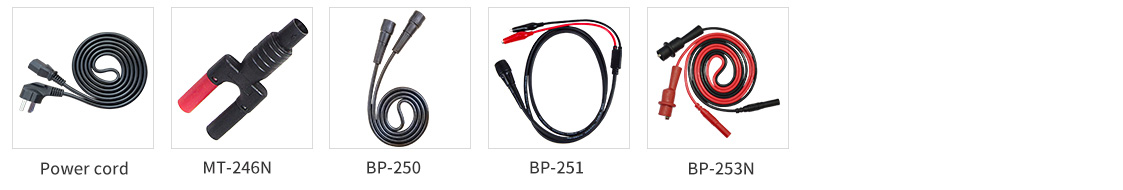

For more information,please call +86 13825053608(wechat) or send email to: sales@pintech.com.cn

Model	HA-820A
Output
Output DC Voltage(Max.)	400V DC
Output AC Voltage(Max.)	800Vp-p
Output DC Current(Max.)	100mA DC
Output AC Current(Max.)	200mAp-p
Output Power(Max.)	40 VA
Bandwidth	DC-400kHz(-3dB)
Slew rate(Typ.)	500V/μs
Output Resistance (Protection SW OFF)	10Ω
Output Resistance (Protection SW ON)	5kΩ/40watt
Max. Loading value	4kΩ@Range±400V;2.5kΩ@Range±250V
Input (normal/Max.)	±5V(Max.±10V)
AMPLtimes	100(Max)
DC OFFSET(2 options with 2 Rout)	±250V/± 400V
Monitor(Output ratio)	100：1
Working Temperature	0~40℃
Working Humidity	0~80%RH
Weight	4.8 kg
size	382.9236.3148.2 mm
Protection	1.Output used FUSE 2.Protection SW protection resistance(ON/OFF) 3.Output short circuit, overload, over current, over voltage protection 4.INPUT/OUTPUT overload protection 5.Overheating protection
Measuring display(0~1MHz)
	Range	Resolution	Accuracy
Max. voltage	±400V	0.1V	±(1%+2V)
Min. voltage	±400V	0.1V	±(1%+2V)
Peak to peak voltage	0~800.0V	0.1V	±(1%+2V)
Offset voltage	±400V	0.2V	±(1%+0.4V)
Output current	0~100.0mA	0.1mA	±1%
Setting
AMPL times	0~100.00	0.05 times	-
Output bias	±400V	0.2V	1%
