THS6000 4 channels 70MHz Portable Oscilloscope

WeChat

Sina Weibo

QQ space

Douban

Baidu Post Bar

Brand PINTECH

Model THS6000 Series

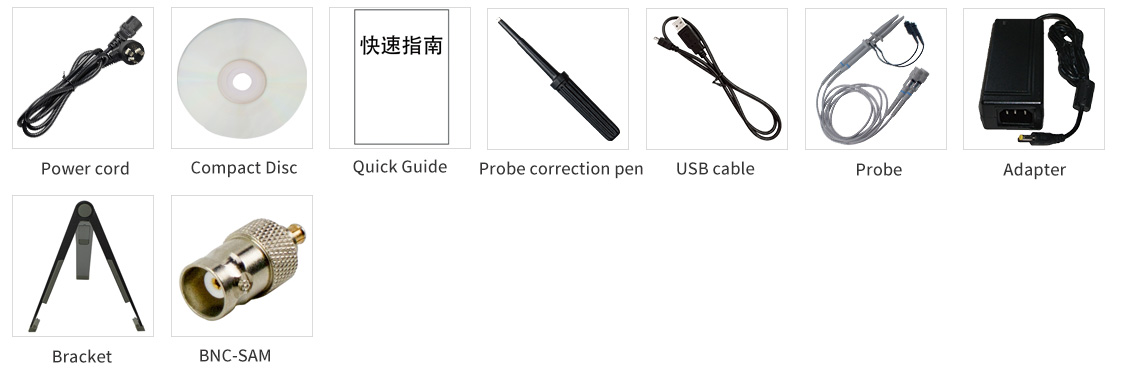

DetailDimension drawingFrequency diagramAccessory detail

1、Max 14-bit high resolution ADC.

2、Max 40M record length; max 45000 wfms/s waveform refresh rate.

3、low back ground noise.

4、8 inch 800 x 600 high resolution LCD, multi-touch screen, more user-friendly operation experience.

5、SCPI, and LabVIEW supported.

6、multi- trigger, and bus decoding function.

7、multi-interface integration - USB host, USB device,LAN, Wifi(optional).

Model	THS 6070	THS 6070A
Bandwidth	70MHz	70MHz
Sampling rate	1GSa/s
Vertical resolution(A/D))	8 bits	8/12/14 bits
Record Length	40M
Waveform refresh rate	45,000 wfms/s
Horizontal Scale(s/div)	1ns/div - 1000s/div, step by 1 - 2 - 5
Channel	4
Display	8" color LCD, 800 x 600 pixels display，multi-touch screen
Input impedance	1MΩ ± 2%, in parallel with 15pF ± 5pF
Max. Input voltage	1MΩ ≤ 300Vrms;
Probe attenuation factor	0.001X - 1000X, step by 1 - 2 - 5
Frequency stability	±2.5ppm
Input coupling	DC, AC, GND
Vertical sensitivity	1mV/div - 10V/div (at input)
Trigger Type	Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, UART(RS232), and CAN
Bus Decoding	I2C, SPI, RS232, CAN
Trigger Type	Auto,normal,single
Auto measurement	Vpp, Vavg, Vrms, Freq, Period, Week RMS, Cursor RMS, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, Phase A→B ↑, Phase A→B↓, Preshoot, Rise Time, Fall Time,+Width, -Width, +Duty, -Duty, Duty Cycle, Delay A→B ↑, Delay A→B↓, +Pulse Count, -Pulse Count, Rise Edge Count, Fall Edges Count, Area, Cycle Area
Waveform Math	＋, －, ×, ÷, FFT, Digital Filter
Waveform storage	100 sets
Connector	USB, Pass/Fail, LAN, WIFI
Frequency counter	Optional
Battery	7.4V, 8000mAh，5 hours operation
Working Temperature	0~40℃
Working Humidity	0~90%RH
Dimension	270x191x48（mm）
Weight （excluding accessories）	1.7kg
