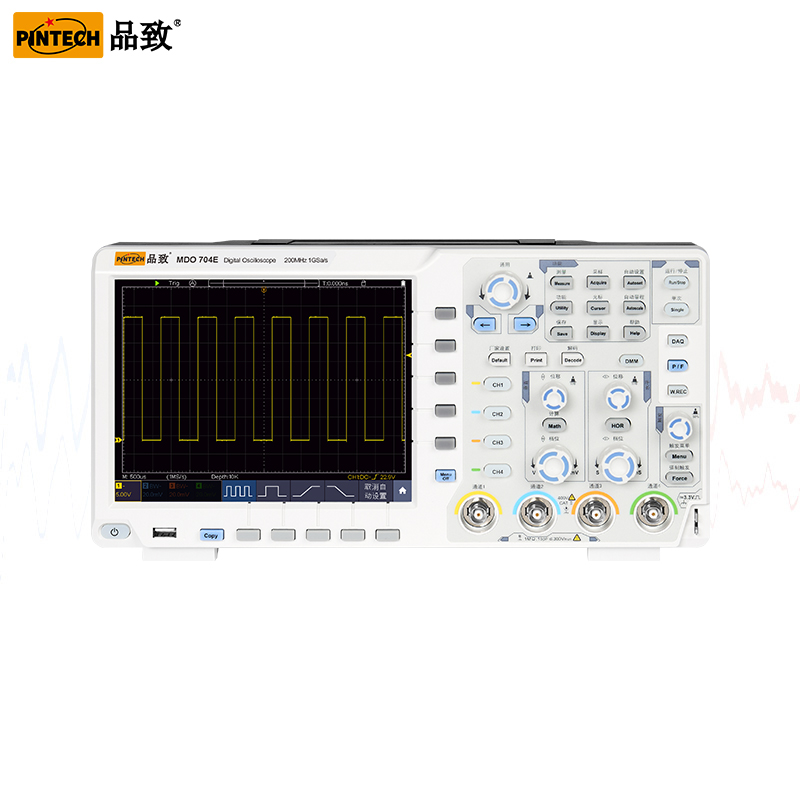

MDO704E 4 channels 200MHz digital oscilloscope

Model

Vertical Resolution(A/D)

Bandwidth

Rise time

1ns/div - 1000s/div,

step by 1 - 2 - 5

MDO 704E

8 bits

200 MHz

≤ 1.75 ns

Sample Rate

4 channels

500 MSa/s

2channels

1 GSa/s

Single channel

1 GSa/s

Waveform Refresh Rate

70,000 wfms/s

Display

8 inch (800×600)TFT LCD

Channels

4

Record length

4 channels operating,10M

2channels operating,20M

Single channel operating, 40M

Sample Rate / Relay Time Accuracy

Max. ±2.5 ppm（environmental temperature+25℃）

Input Coupling

DC, AC, GND

Input impedance

1 MΩ ±2%，in parallel with 15 pF±5 pF

Max. Input voltage

400 V（DC + AC peak）

DC gain accuracy

1 mV

±3%

≥2 mV

±2%

Vertical Sensitivity

1 mV/div～10 V/div

Trigger Type

Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic;

Optional: I2C, SPI, RS232,
and CAN

Bus Decoding(optional)

RS232、I2C、SPI、CAN

Trigger Mode

Auto, Normal, and Single

Signal format and line/field frequency (video trigger type)

Support any field frequency or line frequency NTSC, PAL and SECAM broadcasting system

Auto measurement

Vp-p,Vavg,Vrms,Freq,Period,Week RMS,Cursor RMS,Vmax,Vmin,Vtop,Vbase,Vamp,Overshoot,Preflush,phase,Preshoot,rise time,fall time,+width,-width,+duty,-duty,duty cycle,delay A→B↓,delay A→B↑,+Pulse count,-Pulse count,rise edge count,fall edge count,area, cycle area

Waveform Math

+, -, *, /, FFT, Intg, Diff, Sqrt, and user defined function

Waveform storage

100 sets

Communication Interface

Standard

USB Host, USB Device；Trig Out (P/F)；LAN

Optional

VGA

Printer compatible

PictBridge

Power supply

100V – 240 VACRMS, 50/60 Hz, CAT Ⅱ

Fuse

2A，T class，250 V

Battery (optional)

3.7 V, 13200 mAh

Touch screen(optional)

Multi-touch screen

Working Temperature

Working Humidity

Weight

size
