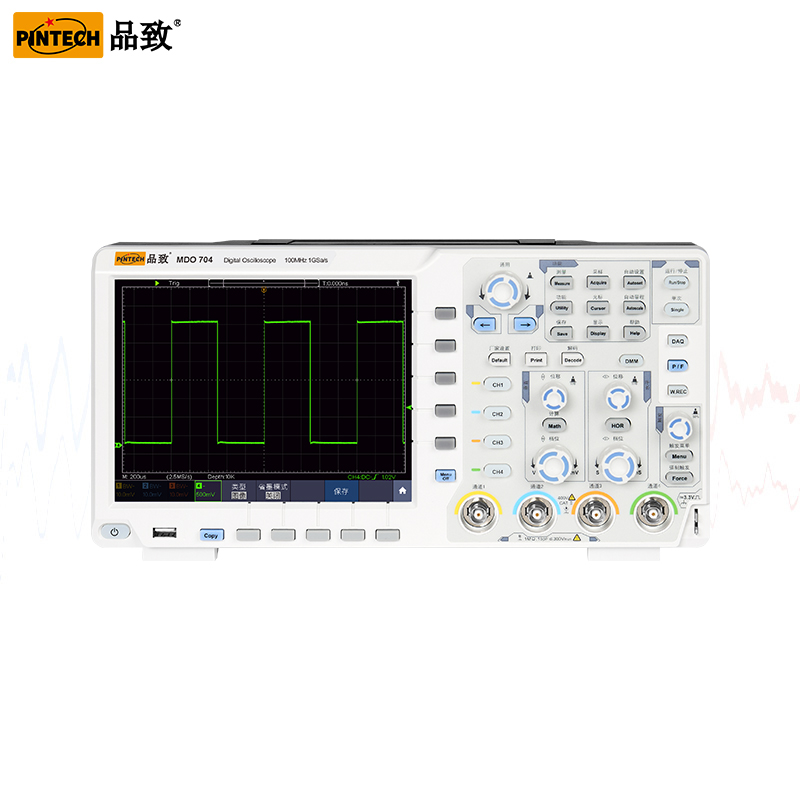

MDO 704 4 channels 100MHz digital oscilloscope

WeChat

Sina Weibo

QQ space

Douban

Baidu Post Bar

Brand PINTECH

Model MDO 704

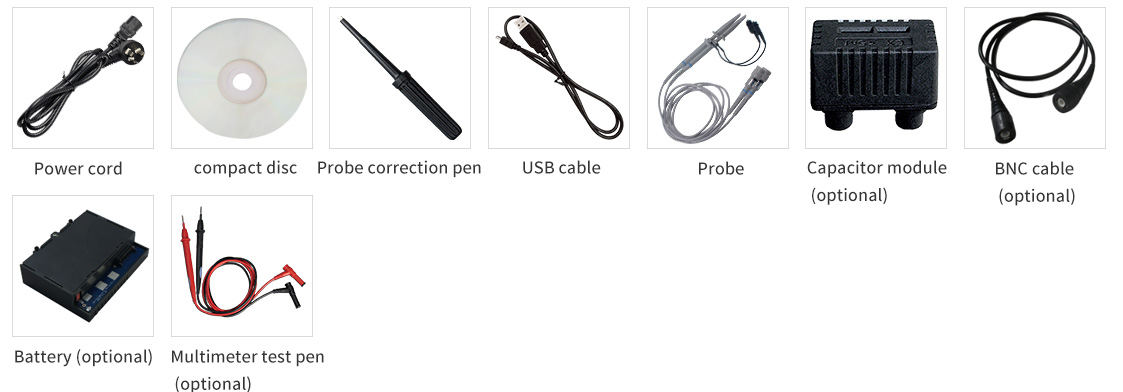

DetailDimension drawingFrequency diagramAccessory detail

+ 40M record length 45,000 wfms/s waveform refresh rate + waveforms storage and replay function available + muti-level gray scale and color temperature display. + optional multi-point touch screen, more user-friendly operation experience + 8 inch 800 x 600 high resolution LCD + muti trigger type and bus decoding function + SCPI communication function, labview communication function

+ 40M record length 45,000 wfms/s waveform refresh rate
+ waveforms storage and replay function available
+ muti-level gray scale and color temperature display.
+ optional multi-point touch screen, more user-friendly
operation experience
+ 8 inch 800 x 600 high resolution LCD
+ muti trigger type and bus decoding function
+ SCPI communication function, labview communication function

Model		MDO704
Bandwidth		100MHz
Sample Rate		1GSa/s
Vertical Resolution(A/D)		8bits
Record length		40M
Waveform refresh rate		45,000 wfms/s
Horizontal Scale (s/div)		2ns/div - 1000s/div, step by 1 - 2 - 5
Rise time（BNC typical）		≤3.5ns
Channel		4
Display		8" color LCD, 800 x 600 pixels TFT LCD,muti trigger type
Input impedance		1MΩ±2%，and 15pF±5pF parallel
Channel Isolation		50Hz : 100 : 1, 10MHz : 40 : 1
Max. Input voltage		1MΩ ≤ 300Vrms;
DC gain accuracy		±3%
DC accuracy (average)		average≥16：±（3% +0.05div) for △V
Probe attenuation factor		0.001X - 1000X, step by 1 - 2 - 5
LF response（AC，-3Db）		≥5Hz(BNC)
Sample rate/relay time accuracy		±1ppm
Interpolation		(sinx) / x，x
Interval（△T) accuracy (full bandwidth)		Single : ±(1 sample interval time+1ppm x reading+0.6ns); average>16:±(1sample interval time+1ppm x reading+0.4ns)
Input coupling		DC, AC, GND
Vertical sensitivity		1mV/div - 10V/div (at input)
Trigger Type		Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232, and CAN (optional)
Bus Decoding(optional)		I2C, SPI, RS232, CAN
Trigger mode		auto, normal, single
Vertical range		±2V(1mV/div～50mV/div)；±20V(100mV/div～1V/div)；±200V(2V/div～10V/div)
Line / field frequency（Video）		NTSC,PAL and SECAM standard
Cursor measurement		Voltage difference between cursor（△V）,time difference between cursor（△T）,Voltage difference between cursor（△V）and time difference between cursor（△T）,auto cursor
Auto measurement		Vp-p,Vavg,Vrms,Freq,Period,Week RMS,Cursor RMS,Vmax,Vmin,Vtop,Vbase,Vamp,Overshoot,phase,Preshoot,rise time,fall time,+width,-width,+duty,-duty,duty cycle,delay A→B↓,delay A→B↑,+Pulse count,rise edge count,fall edge count
Waveform Math		＋, －, ×, ÷, FFT
Waveform storage		100sets
Lissajous figure	bandwidth	Full bandwidth
	Phase difference	±3 degrees
Connector		USB, Pass/Fail, LAN, VGA（optional）
Frequency counter		available
Power supply		100V - 240V AC, 50/60Hz, CAT II
Fuse		2A, T class, 250V
Battery (optional)		3.7V, 13200mA
Working Temperature		0~40℃
Working Humidity		0~90%RH
Weight		1.1kg
size		340mm(L)x177mm(H)x90mmW)
